Syntagma

An Agentic Curriculum Lifecycle Management System for PES University

Syntagma is a FastAPI + static-frontend application that collects course submissions from faculty, refines them into curriculum-ready records with an LLM, renders the entire syllabus as HTML/PDF, lets an assistant agent propose and apply reviewable edits, and preserves named curriculum snapshots (versions).

It is built for a real, fast-changing syllabus: PESU revamps course content nearly every academic year, so nothing about the produced document is hardcoded. Course data, elective categorization, and specialization brackets all live in the database and are rendered dynamically.

Live Demo: syntagma.lonelyguy.tech (preferred) | Backup: pesucurriculum.vercel.app

Features

Course submission with auto-parsed course codes (semester, department, credits extracted automatically)
AI refinement that preserves all syllabus topics, only cleans and structures content
Full curriculum PDFs in PES University's official A4 format with letterhead
Agentic Editor with AI assistant (SSE streaming, 35 tools, draft review, attachments)
Reviewable drafts (agent never auto-applies changes)
Agent retry with fallback model (Fibonacci backoff on 502/503, automatic model switch)
Chat persistence (messages, tool calls, and results saved to database)
Dynamic specialization management (DB-driven tracks, not hardcoded)
Version snapshots with restore, revision history, and version-vs-version comparison
Course visibility toggle and credit-based sorting
Dual cache layer (Redis + in-memory, lazy invalidation)
Authentication via Supabase Auth

Tech Stack

Component	Technology	Purpose
Backend framework	FastAPI 0.138 + Uvicorn	ASGI server, routing, validation
Language	Python 3.12	Runtime
Frontend	Vanilla HTML/CSS/JS	No build step, served as static files
Database	Supabase (PostgreSQL)	Persistent storage for all data
Cache	Upstash Redis (optional)	Serverless Redis; falls back to in-memory dict
LLM provider	OpenRouter	Streaming + tool calling, fallback model retry
PDF engine	WeasyPrint	A4 curriculum PDFs from Jinja2 HTML
Templating	Jinja2	Curriculum layout, course pages, diffs
HTTP client	httpx	Async requests to OpenRouter and external URLs
Spreadsheet parsing	openpyxl	Reading uploaded .xlsx files for text extraction
Markdown rendering	marked.js (CDN)	Agent chat message rendering in browser
HTML sanitization	DOMPurify (CDN)	Sanitizing agent-generated HTML
PDF text extraction	poppler-utils (pdftotext)	Extracting text from uploaded PDF attachments
Auth	Supabase Auth (JWT)	Browser-based authentication
Error tracking	Sentry SDK (optional)	Production error monitoring
Deployment	Docker on HF Spaces	Backend at port 7860
Frontend deploy	Vercel	Static hosting with /api rewrite to backend

Quick Start

python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
cd backend && fastapi dev app/main.py

Server at http://127.0.0.1:8000. API under /api. Frontend served from frontend/.

source .venv/bin/activate
pytest                              # 229 tests
python -m compileall backend/app    # also runs in CI

Architecture

flowchart TB subgraph Frontend["Frontend (Vanilla HTML/CSS/JS)"] Auth["/auth/ Sign In"] Dashboard["/ Dashboard"] Form["/form/ Course Submission"] Courses["/courses/ Course Management"] Preview["/preview/ PDF Preview"] Editor["/live-editor/ Agentic Editor"] Versions["/versions/ Version History"] end subgraph Backend["FastAPI Backend (/api)"] direction TB SubAPI["Submissions"] CoursesAPI["Courses"] PreviewAPI["Preview (8 endpoints)"] AgentAPI["Agent (13 endpoints)"] ChatAPI["Chat (SSE streaming)"] VersionsAPI["Versions (10 endpoints)"] end subgraph Services["Services Layer"] Refinement["Refinement - LLM content extraction"] AgentTools["Agent Tools - 35 tools"] Diffing["Diffing - protected field validation"] Curriculum["Curriculum - sorting, snapshots"] PreviewSvc["Preview - build_course_preview"] Rendering["Rendering - Jinja2 + WeasyPrint"] Cache["Cache - Redis + in-memory"] end subgraph External["External Services"] LLM["OpenRouter - Primary + Fallback"] Redis[("Upstash Redis")] Supa[(Supabase Postgres)] WeasyPrint["WeasyPrint - A4 PDF"] end Auth -->|"JWT"| Dashboard Dashboard --> Form & Courses & Preview & Editor & Versions Form -->|"POST /submissions"| SubAPI SubAPI --> Refinement Refinement -->|"extract content"| LLM Refinement -->|"store"| Supa Courses --> CoursesAPI CoursesAPI --> Cache Cache -.->|"miss"| Supa Preview --> PreviewAPI PreviewAPI --> PreviewSvc PreviewSvc --> Rendering Rendering --> WeasyPrint Editor -->|"SSE"| ChatAPI ChatAPI --> LLM LLM -->|"tool calls"| AgentTools AgentTools --> Supa ChatAPI -->|"save"| Supa VersionsAPI --> Curriculum Curriculum -->|"snapshot"| Supa Editor -->|"review/apply"| AgentAPI AgentAPI --> Diffing Diffing -->|"validate"| Supa Cache -.-> Redis

Layer Responsibilities

Layer	Location	Responsibility
Static frontend	frontend/	Course entry, course management, PDF preview, agentic editor, version history
API backend	backend/app/	FastAPI routes, validation, refinement, previews, drafts, chat, snapshots
Services	backend/app/services/	Business logic, LLM integration, caching, diffing, tool dispatch
Persistence	Supabase Postgres	Raw submissions, refined courses, agent drafts, chat history, attachments, curriculum versions
Cache	Redis + in-memory	Course lists, version lists, PDFs, with lazy invalidation
Rendering	Jinja2 + WeasyPrint	Curriculum summary pages, course detail pages, PDF exports
Model provider	OpenRouter	Submission refinement and live-editor chat with tool calls + fallback model retry
Auth	Supabase Auth (JWT)	Browser-based authentication with token verification
Monitoring	Sentry SDK	Optional production error tracking

Backend Project Structure

Path	Responsibility
main.py	FastAPI app, CORS, Supabase/.env loading, mounts /api routers and the static frontend
api.py	Aggregates all route routers under a single /api router
supabase.py	Supabase client + first_row() helper
cache.py	Dual cache (Redis + in-memory), lazy invalidation, prefix-based deletion
models/submission.py	CourseSubmission (request contract) and parse_course_code()
services/deterministic.py	compute_hours, compute_program, compute_course_type from credit category
services/refinement.py	The LLM refinement pipeline (refine)
services/curriculum.py	Sorting, ordering, version snapshots, draft records, field updates
services/diffing.py	JSON diff, protected-field validation, patch apply/merge
services/preview.py	build_course_preview, build_specialization_context
services/rendering.py	Jinja2 environment, filters, SEMESTER_NAMES global
services/agent_tools.py	Agent tool definitions + TOOLS registry (35 tools) + call_tool
services/openrouter.py	call() (one-shot), stream_chat() (tool-calling loop), fallback model retry
services/schema.py	REQUIRED_TABLES and schema_status()
services/errors.py	database_http_exception()
services/attachments.py	Text extraction from PDF/DOCX/XLSX/TXT
services/books.py	parse_books() textbook parser
services/elective_categorization.py	AI-powered elective-to-track matching
routes/health.py	GET /api/health/schema
routes/submissions.py	POST /api/submissions, POST /api/submissions/{id}/refine
routes/preview.py	Course/HTML/PDF preview endpoints (8 endpoints)
routes/refined.py	GET/PATCH a single refined course
routes/courses.py	List + toggle visibility + soft-delete refined courses
routes/agent.py	Draft + document-draft + tool endpoints (13 endpoints)
routes/chat.py	Chat sessions, SSE streaming, attachments, system prompt
routes/versions.py	Version CRUD, restore, previews, diffs (10 endpoints)
routes/auth.py	Token verification, logout
templates/jinja_sample.html	Single course + full document renderer + title page
templates/jinja_program.html	Program-level title page (large seal) + PEOs/POs
templates/jinja_1_to_8.html	Semester summary tables (1-4, 7-8)
templates/jinja_sem_5_6.html	Semester 5/6 electives + specialization tables
templates/jinja_diff.html	Structured diff renderer for drafts

Frontend Project Structure

Path	Purpose
index.html	Dashboard hub linking to all surfaces
form/	Raw course submission form with course code parsing
courses/	Refined course list with filtering, visibility toggle, soft delete
preview/	Overall or per-semester PDF preview/download
live-editor/	Agentic Editor: course preview, chat assistant, JSON editor, draft review, version restore
versions/	Snapshot list, preview, comparison, editor handoff
auth/	Sign in (Supabase Auth)
shared/	auth-guard.js, supabase-client.js, shared.css, dialog.js

How It Works

Syntagma has six surfaces. Each serves a purpose in the curriculum lifecycle.

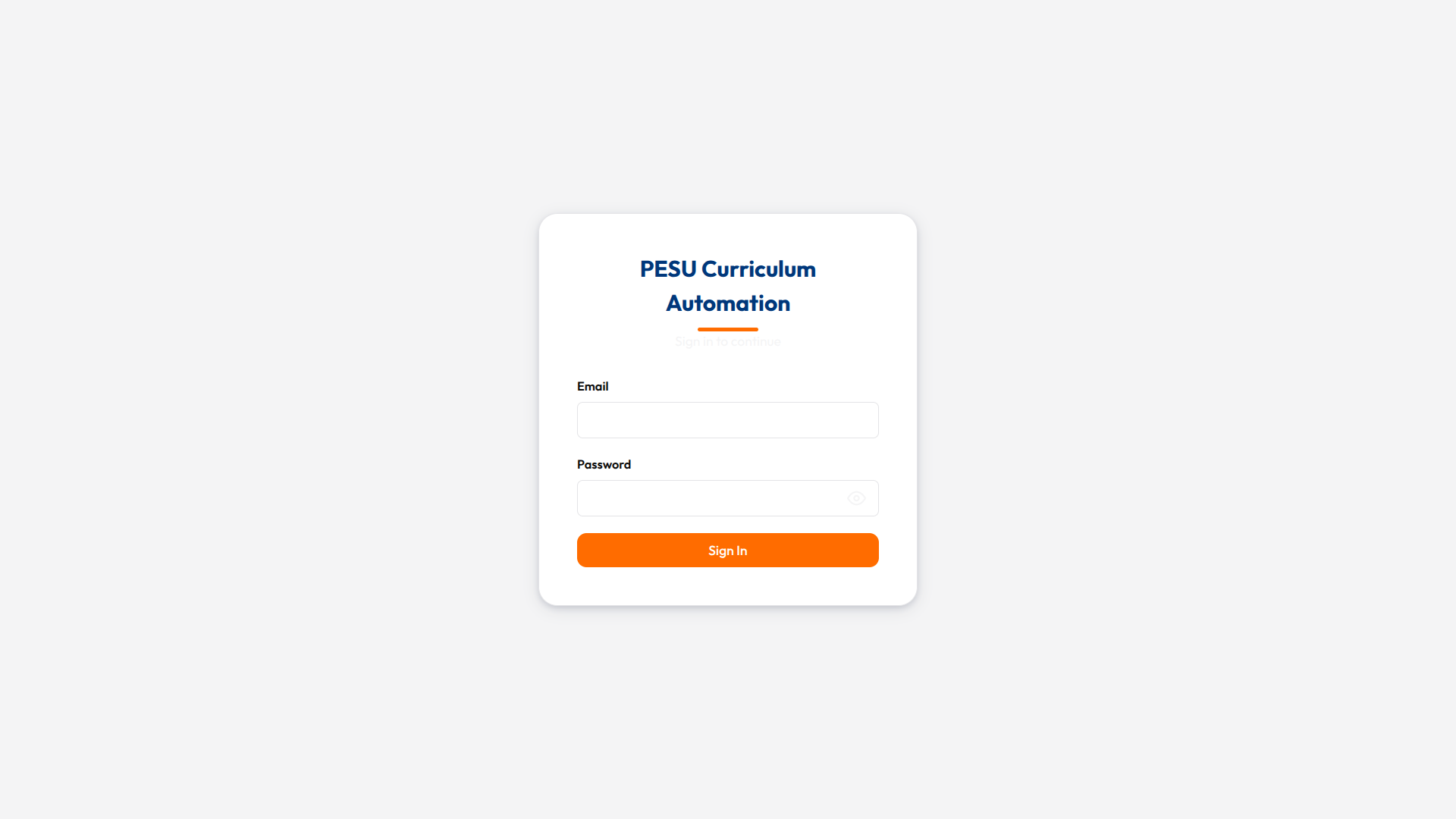

Authentication

Supabase Auth with email/password. JWT verified on every API call. The shared/auth-guard.js script redirects unauthenticated users to /auth/.

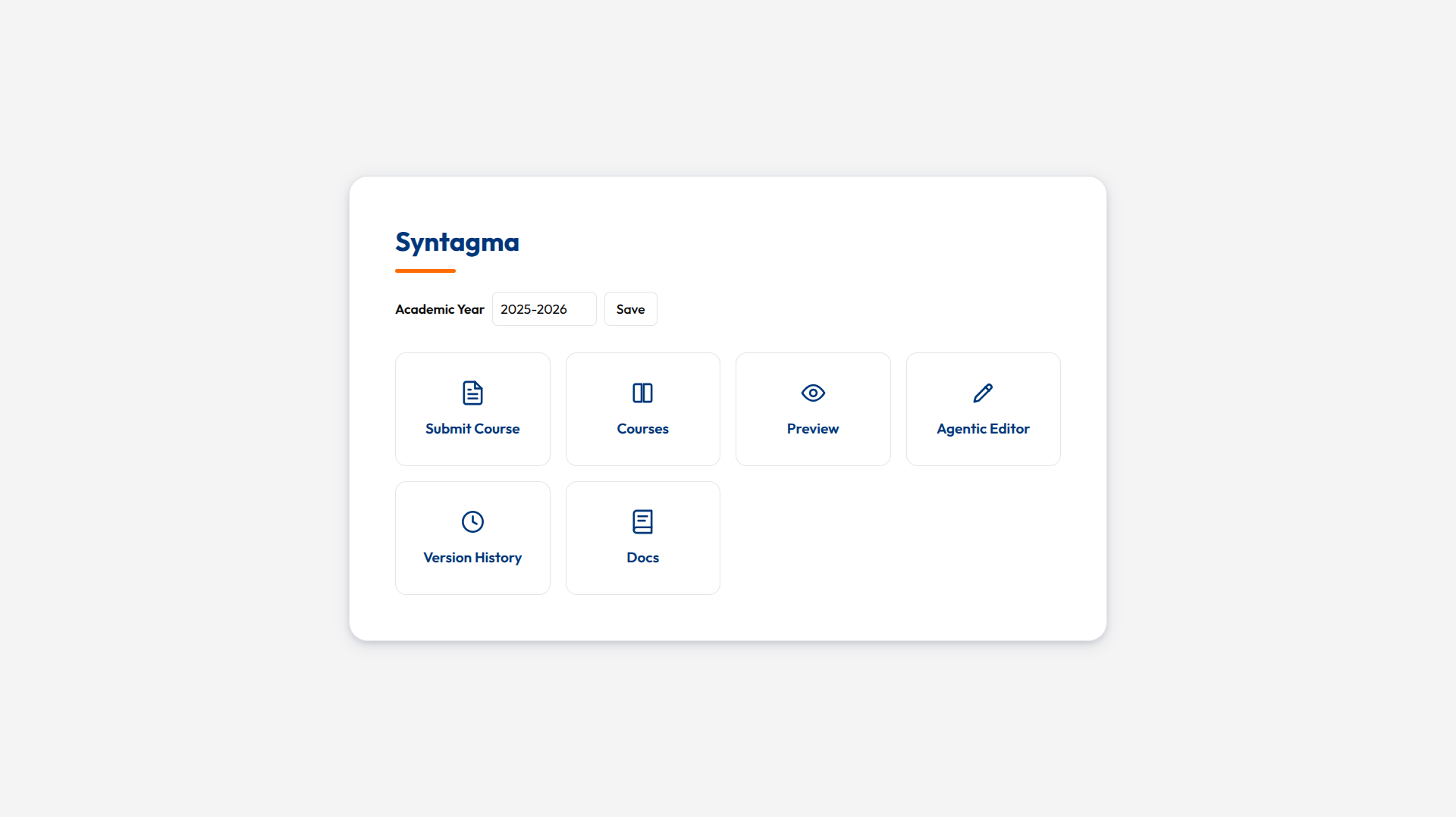

Dashboard

Quick links to all surfaces: Submission Form, Courses, Preview, Live Editor, Versions, and Documentation.

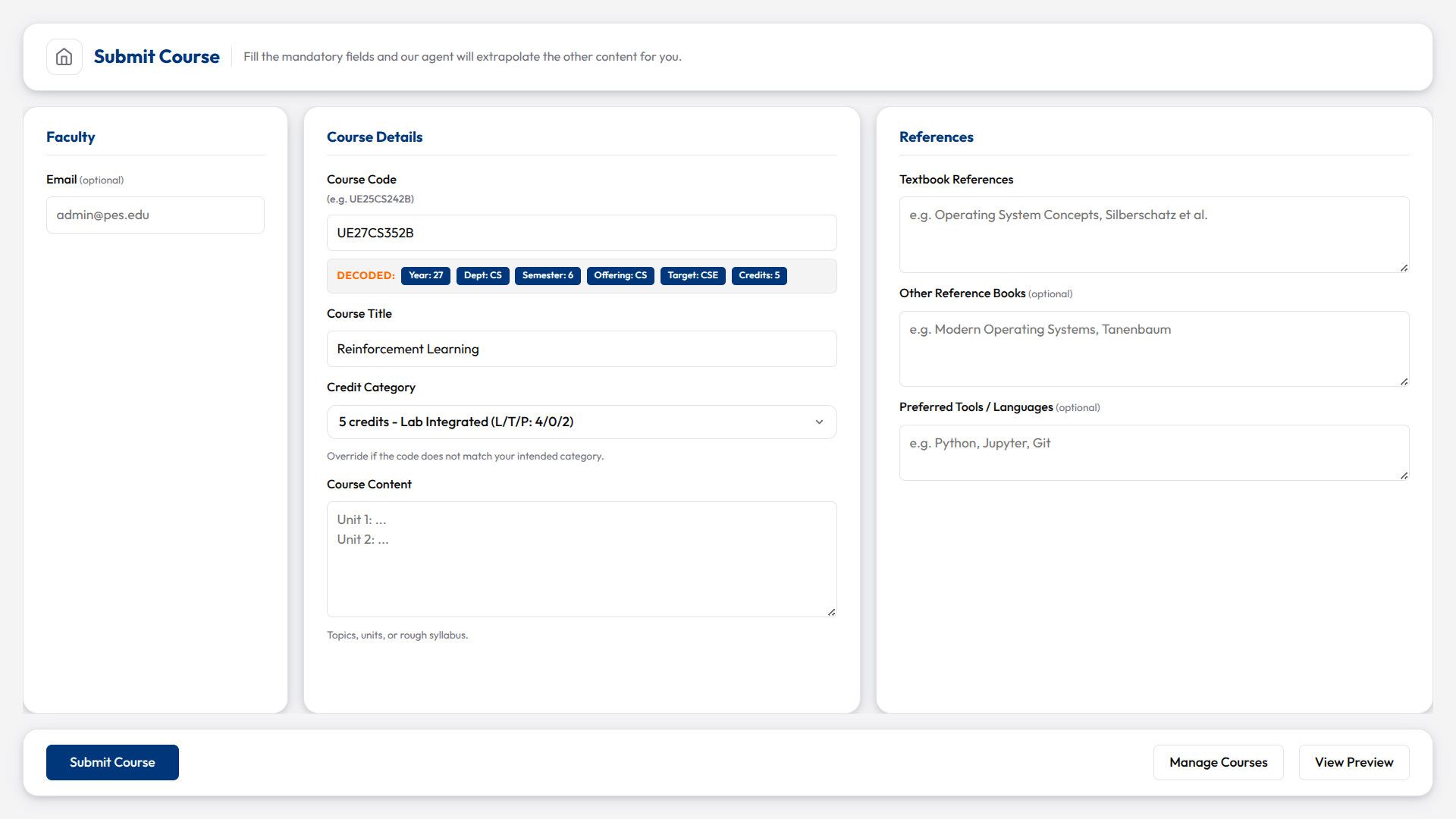

Submission Form

Faculty enter raw course data. Course codes are auto-parsed: semester, department, credits, and course type extracted from the code. Background refinement kicks in immediately after submission. Alternatively, course details can be sent as attachments in the agent chat, where the agent creates a refined course directly using create_refined_course.

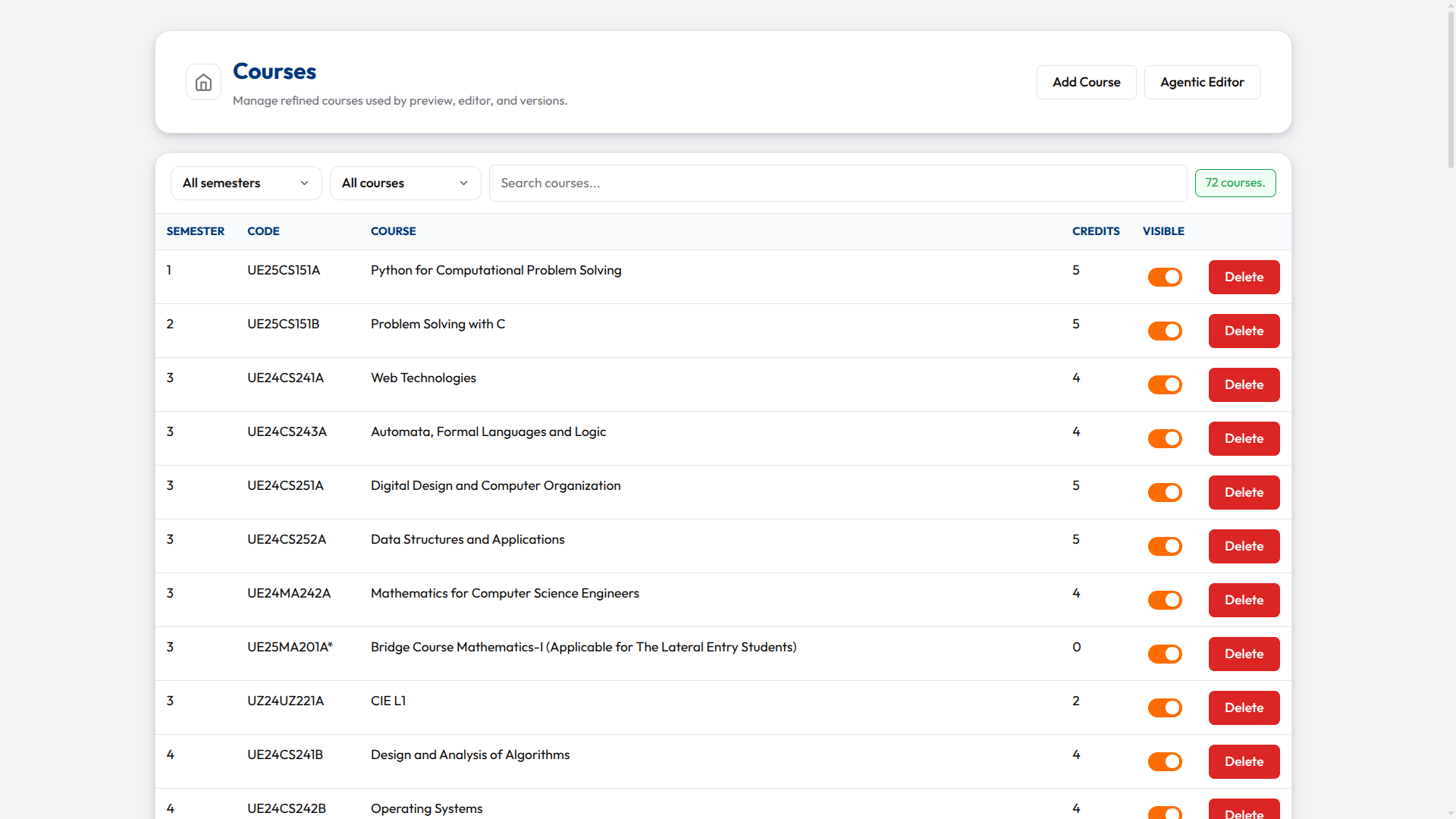

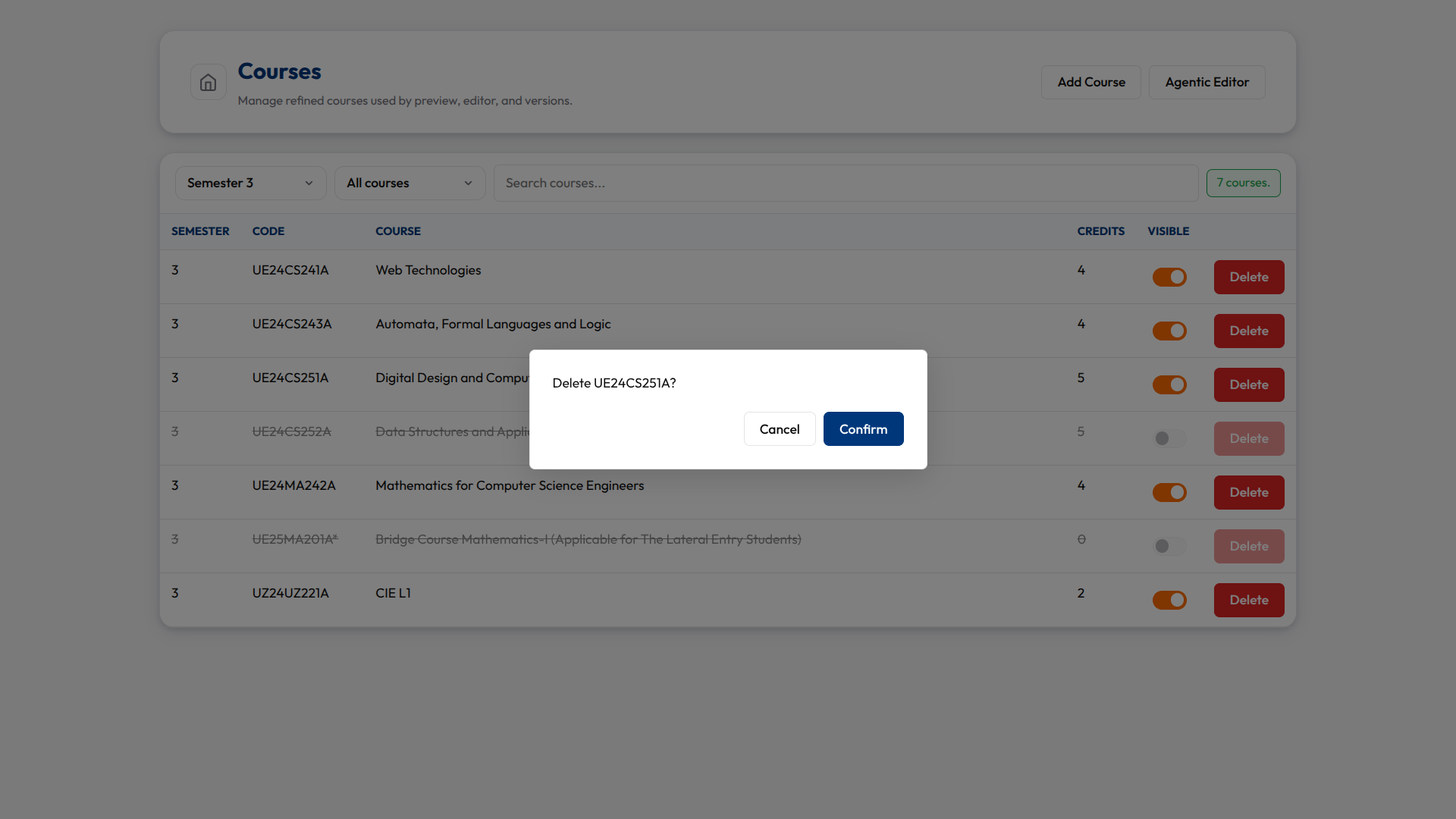

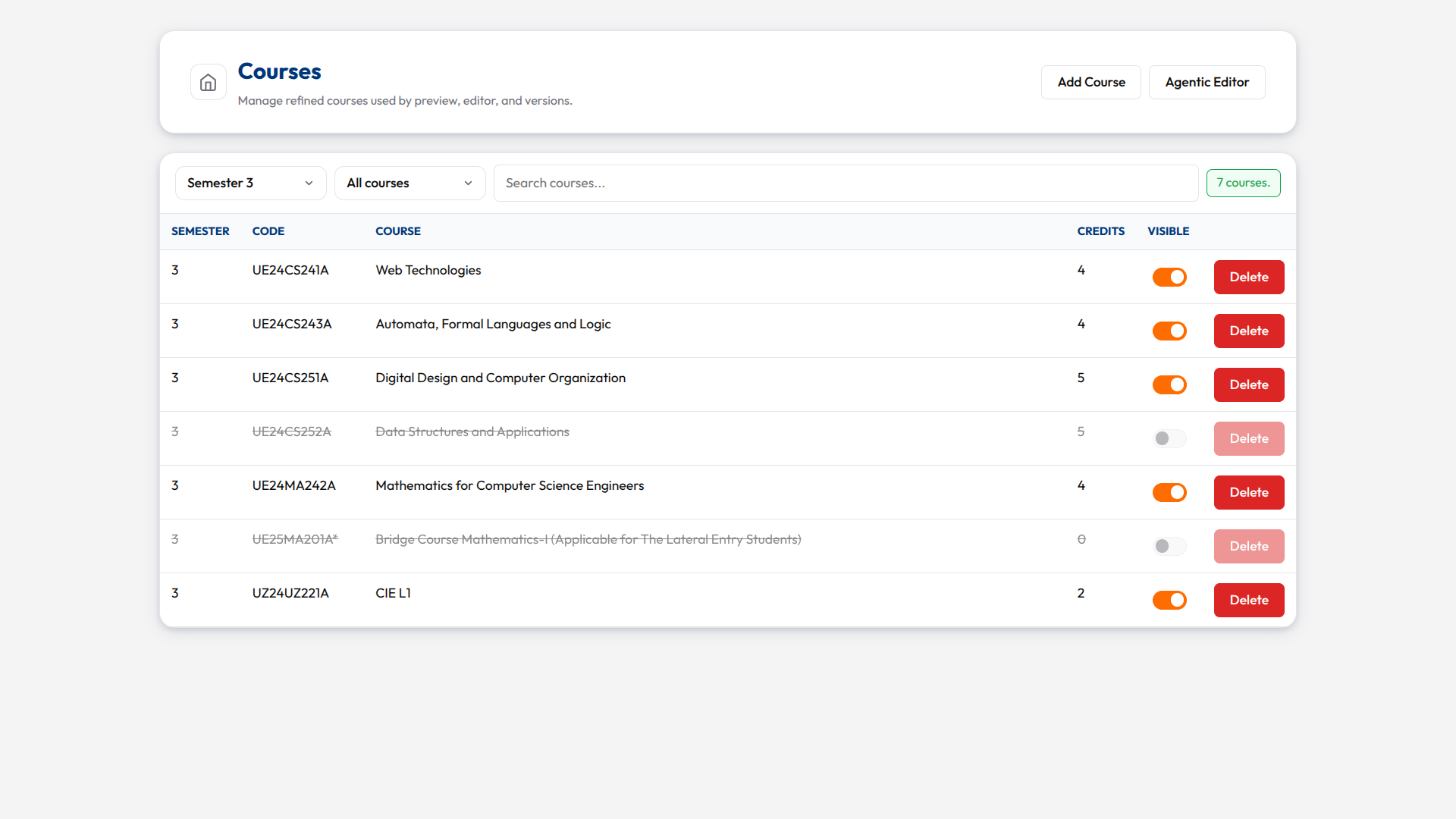

Courses

Lists all refined courses. Filter by semester or department. Toggle visibility (hidden courses are excluded from previews and PDFs). Delete with confirmation modal.

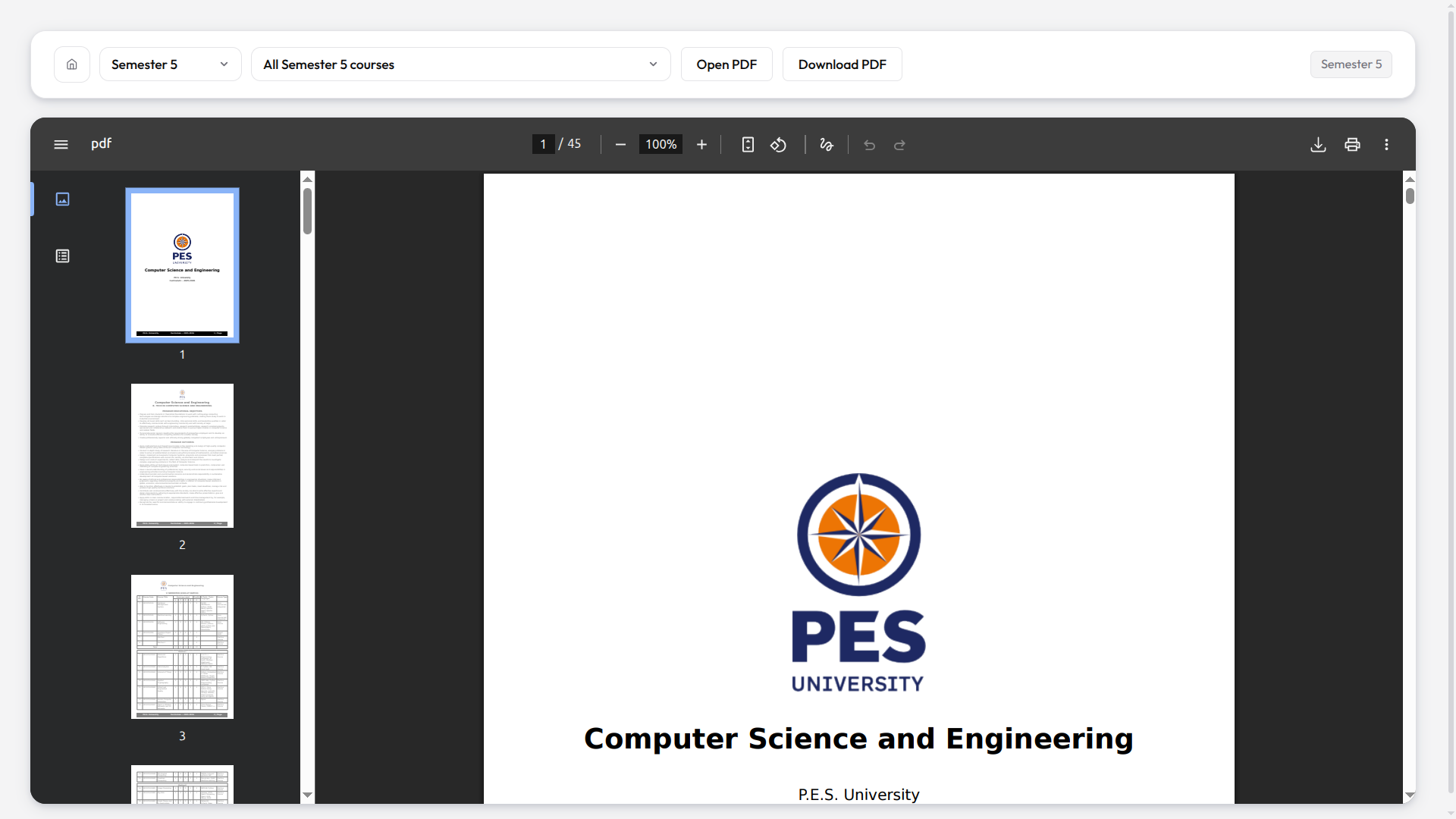

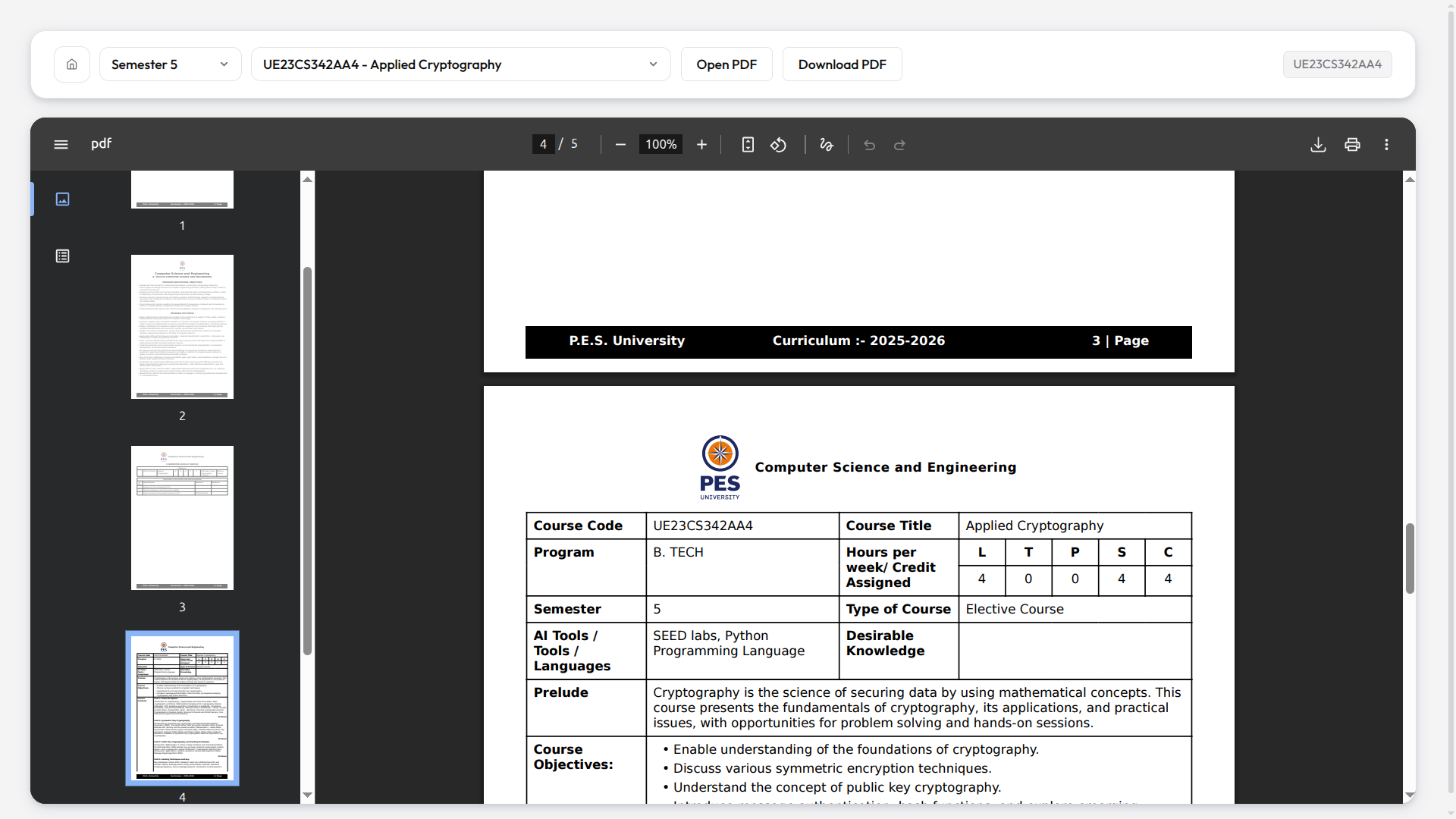

Preview

Three view modes: single course, full document, or per-semester. PDFs generated via WeasyPrint in PES University's A4 format with letterhead.

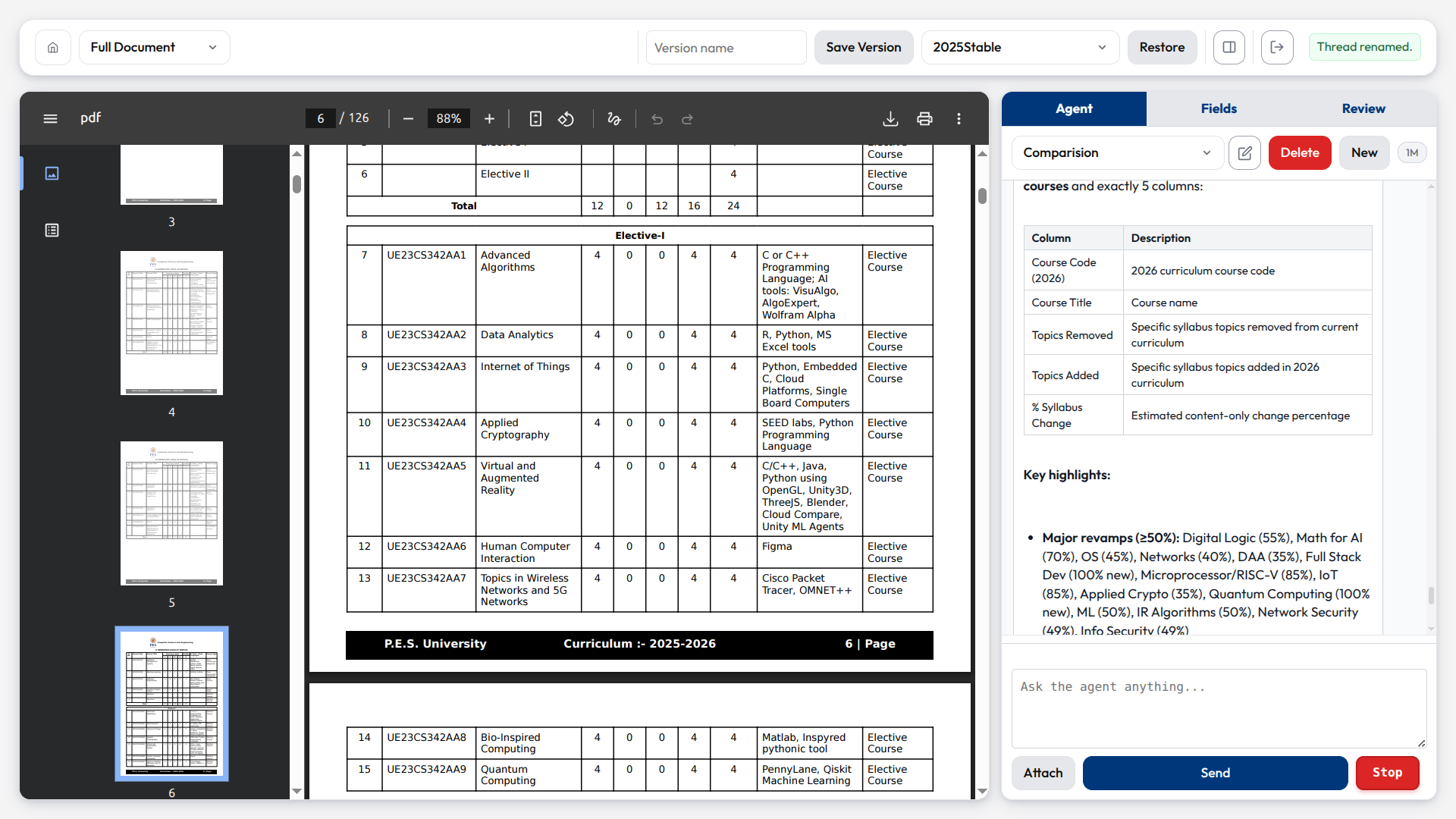

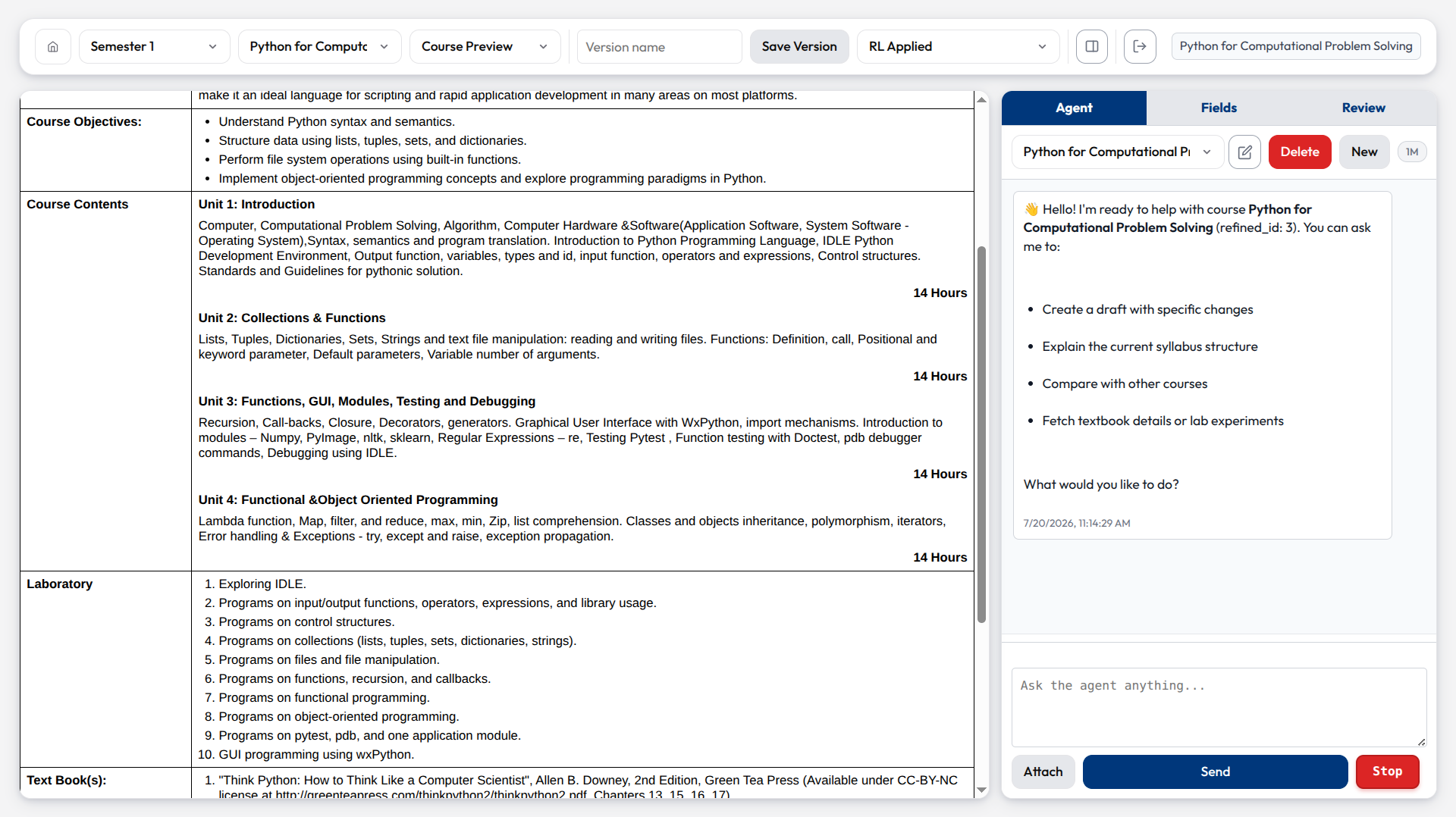

Agentic Editor

Two-column workspace. Left: preview iframe (single course or full document). Right: tabbed panel.

Tab	What it does
Agent	AI assistant via SSE streaming. 35 tools. Creates reviewable drafts, never auto-applies. Thread management with rename/delete. File attachments supported.
Fields	Raw JSON editor. "Propose Changes" creates a reviewable draft. "Save" directly updates (non-protected fields only).

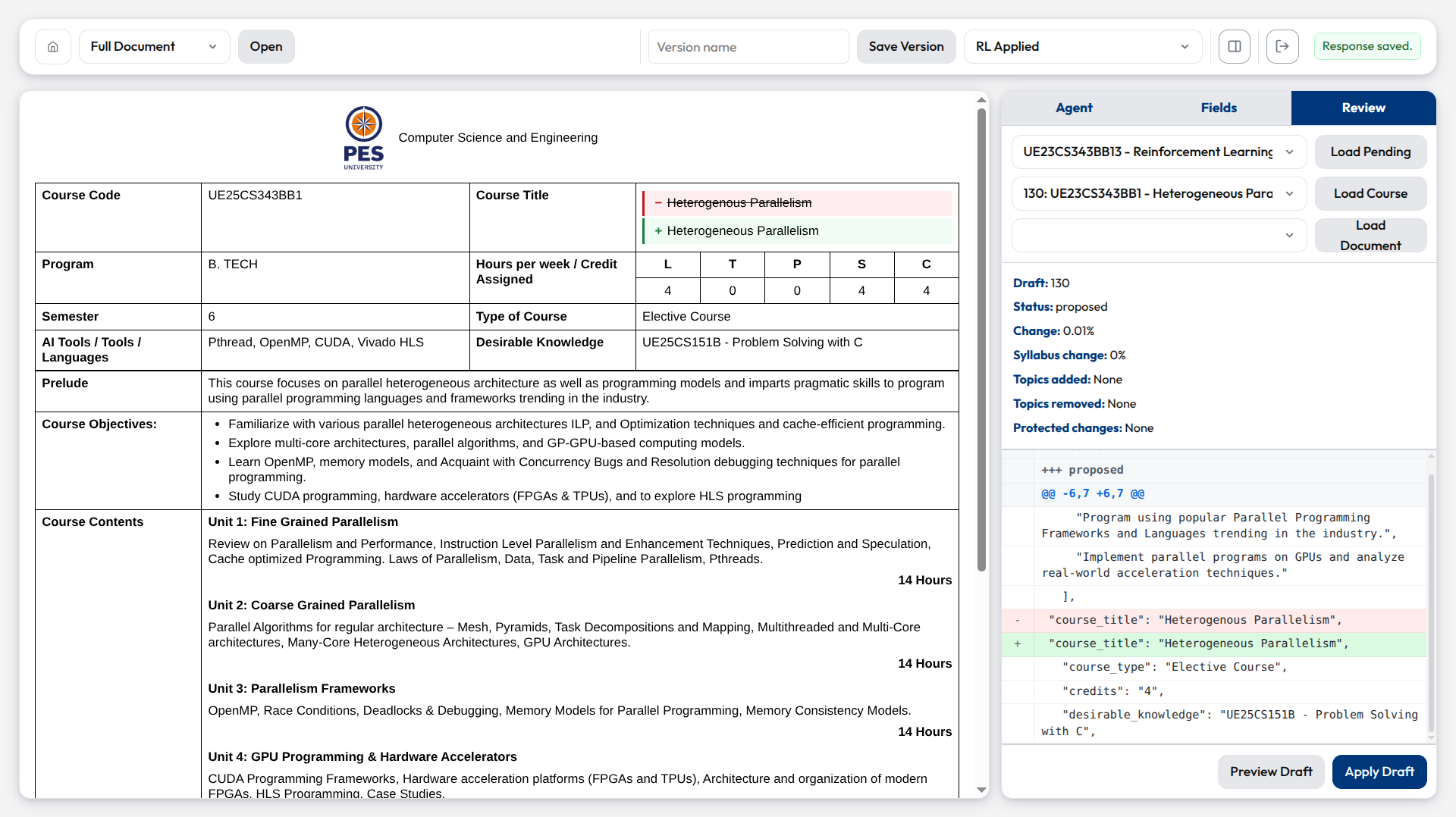

Review	Loads pending drafts (new courses, single-course, multi-course). Shows diff. Apply or reject.

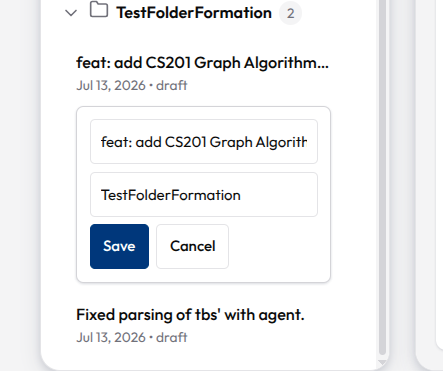

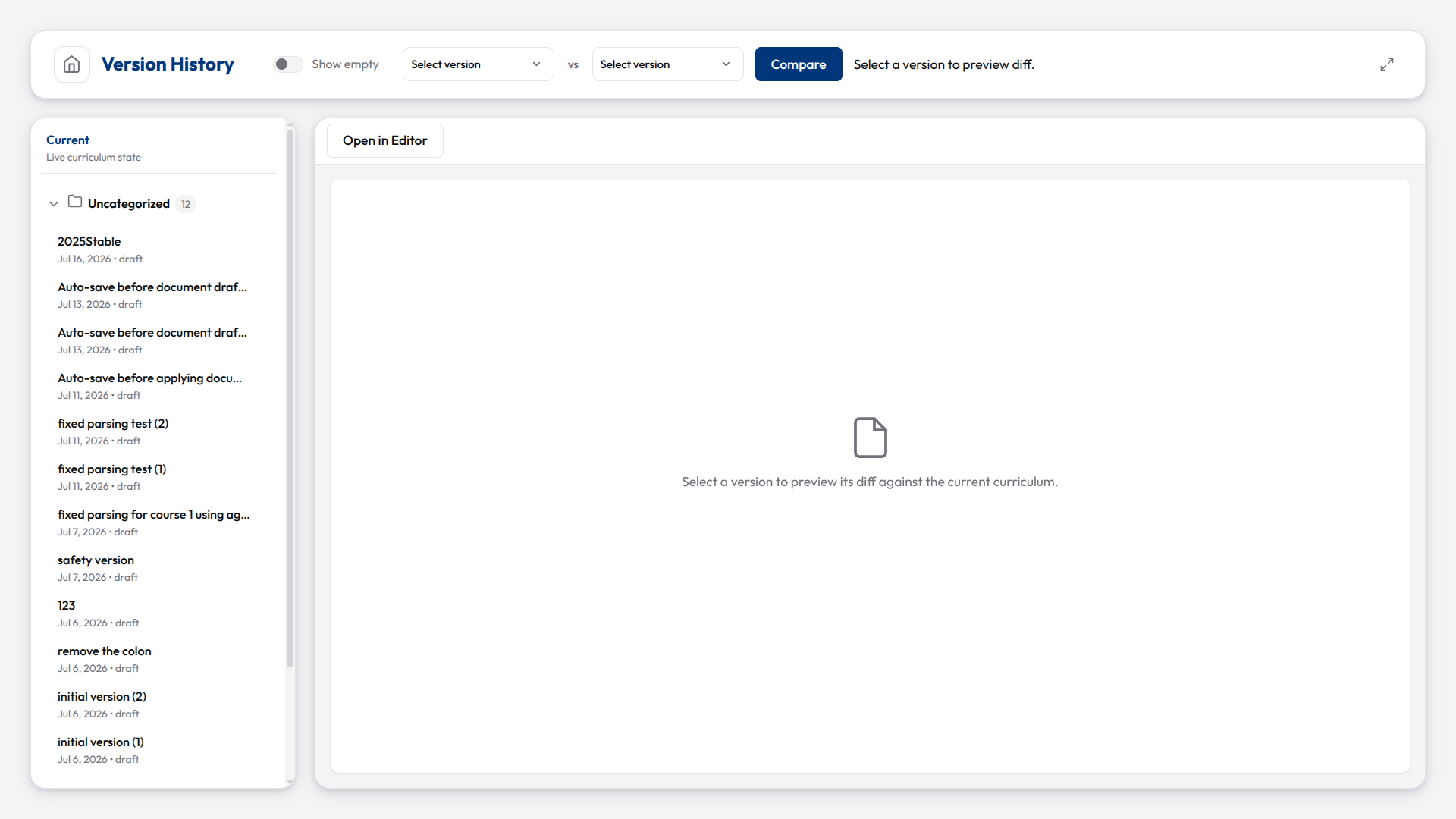

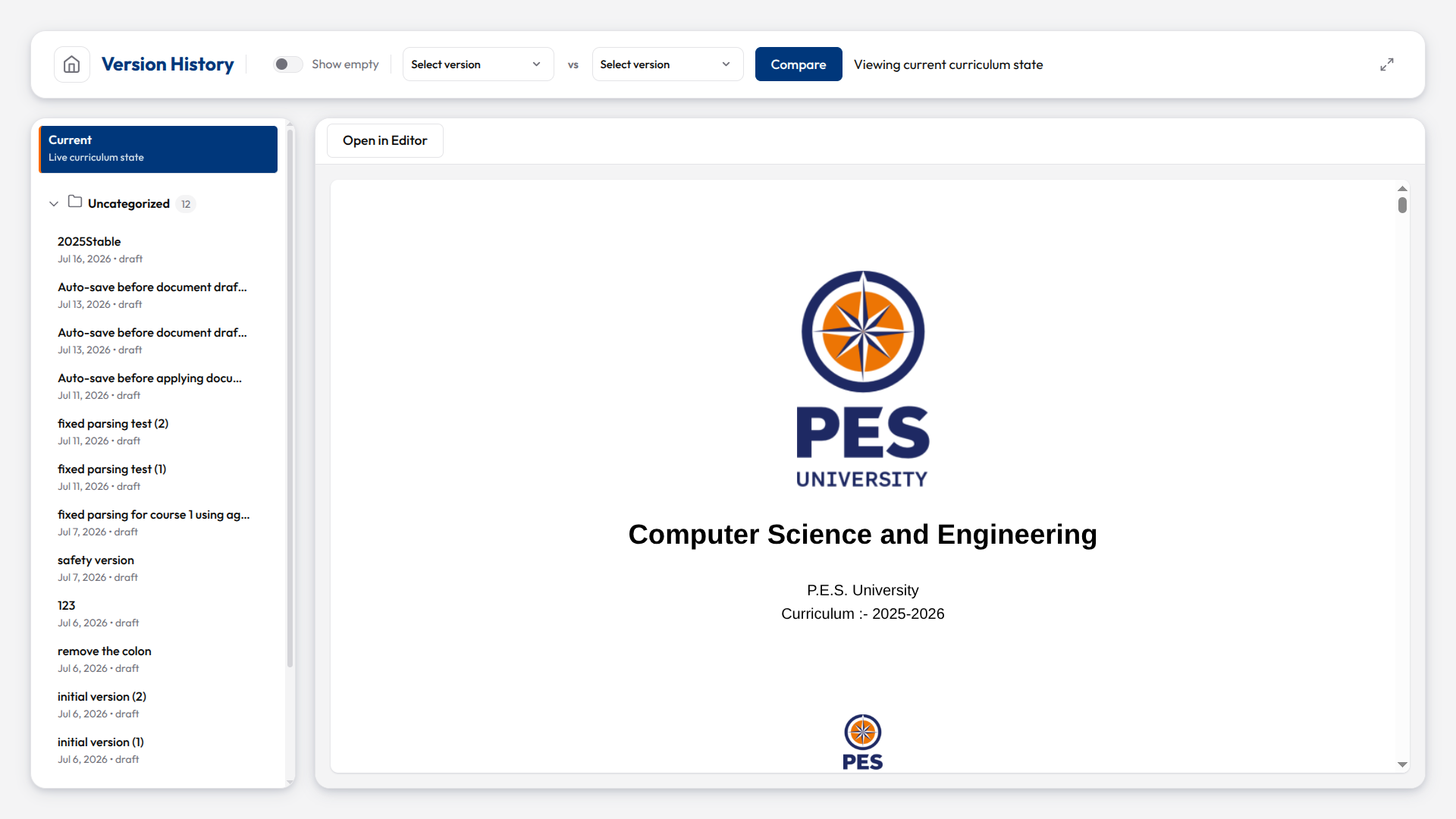

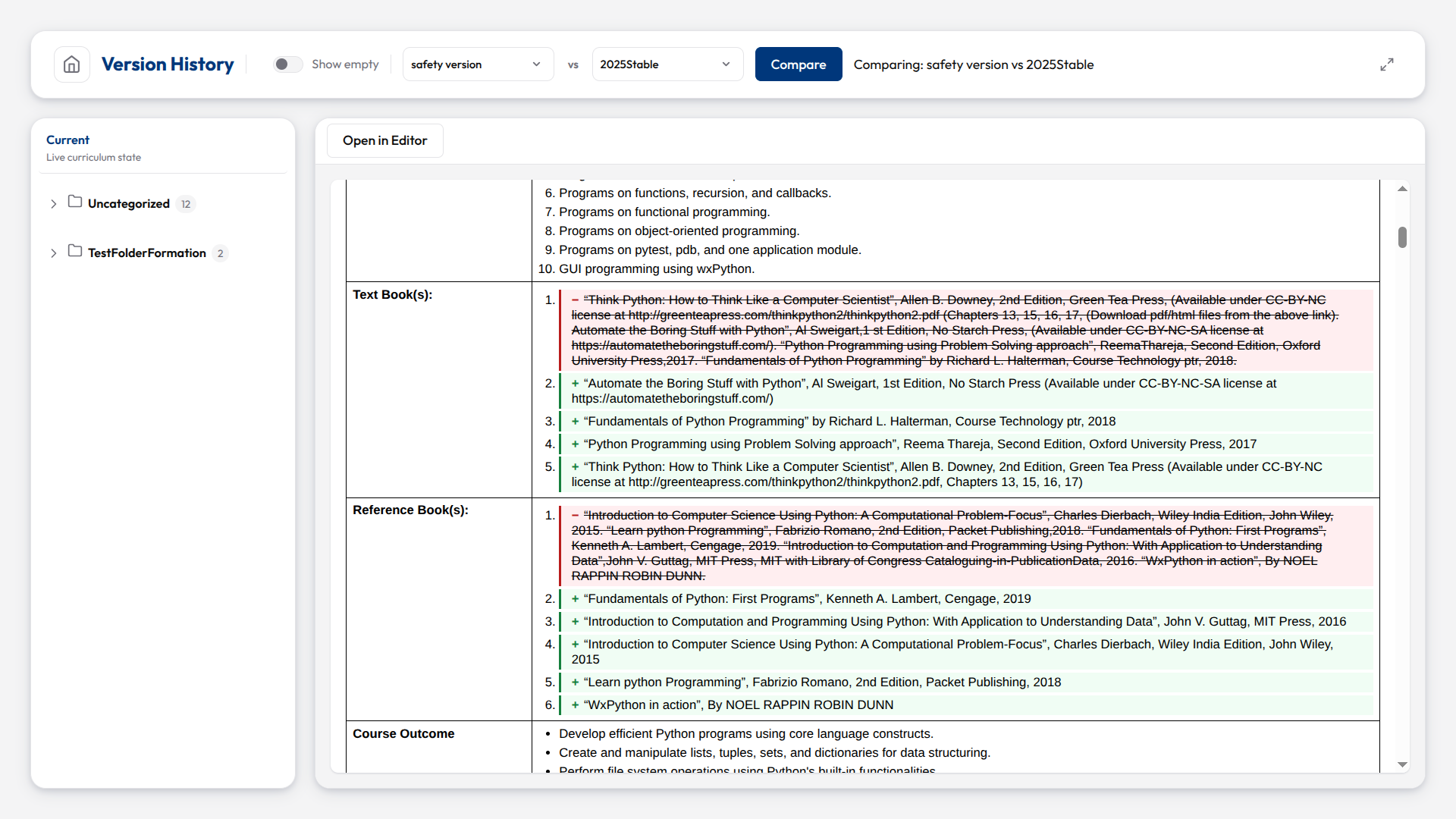

Versions

Named snapshots of the entire curriculum. "Current" at top of sidebar represents live state. Preview any snapshot, compare two versions, or restore a previous state. Restore archives absent courses and resets applied drafts.

Backend Internals

Submission Pipeline

Step	What happens
1	`POST /api/submissions` validates payload against `CourseSubmission`
2	`parse_course_code()` derives `offering_department`, `target_department`, `semester`, `credit_category`
3	Inserts into `submissions`, queues background refinement
4	`refine(submission_id)` builds deterministic fields, calls OpenRouter, upserts `refined_submissions`
5	Course visible in `/api/courses`, previews, and editor

Alternative path: course details sent as chat attachments can be used by the agent to create a refined course directly via create_refined_course, bypassing the submission/refinement pipeline.

Course Code Encoding

UE + YY (year) + DEPT (2-letter) + NUMBER (3-digit) + SUFFIX.

Digit	Meaning
Tens	Credits (0/2/4/5)
Hundreds	Semester group
Suffix A/B	Odd/even semester parity

parse_course_code() in models/submission.py is the single source of truth.

Deterministic Fields

Computed from credit_category by services/deterministic.py. Protected from casual edits.

Category	L	P	S	C	Course type
5	4	2	5	5	Core Course-Lab Integrated
4	4	0	4	4	Core Course
2	2	0	2	2	Core Theory
0	0	0	0	0	Foundation Course

Protected fields (diffing.py): program, lecture_hours, tutorial_hours, practical_hours, self_study, credits, course_type. Drafts that change them are blocked.

Preview & PDF Generation

build_course_preview(row) converts a refined_submissions row into a flat dict for templates. services/rendering.py builds the Jinja2 environment.

Template	Renders
`jinja_program.html`	Title page (PES seal, program name, year) and PEOs/POs
`jinja_sample.html`	Individual course pages and summary tables
`jinja_1_to_8.html`	Semester summary tables (1-4, 7-8)
`jinja_sem_5_6.html`	Electives and specialization tables (5/6)
`jinja_diff.html`	Structured diffs for agent drafts

WeasyPrint converts rendered HTML to PDF. PDFs cached 60s. Course lists and version lists cached 180s.

Specialization System

Fully data-driven. No hardcoded specialization brackets.

Table	Schema
`specialization_definitions`	One row per track: id, semester, letter, name, key, academic_year
`course_specialization_assignments`	One row per (course, track): id, refined_id, specialization_id
`refined_submissions.is_elective`	Boolean flag

build_specialization_context() loads tracks and assignments. Template excludes electives from regular tables, splits by code suffix (AA/BA -> group A), renders specialization assignment tables.

Agent tools: define_specialization, list_specializations, assign_elective_to_tracks, remove_elective_from_tracks, categorize_elective.

Agent System

Tool-calling LLM loop via openrouter.stream_chat. System prompt in chat.py:chat_system_prompt.

Component	Purpose
Curriculum structure context	Semester ranges, course code encoding, credit categories
Draft vs. direct creation guidelines	When to draft vs. create directly
Desirable knowledge guidance	How to handle prerequisite knowledge fields
Agent acknowledgement instruction	Brief text before tool calls
`update_agent_draft` tool mention	Modifying existing drafts

Agent Tools (35 total)

Tool	Category	Description
`get_current_course_json`	Read	Full template-ready course JSON
`get_course_codes`	Read	Lightweight IDs (refined_id, code, title, semester)
`get_course_syllabus`	Read	Units, objectives, course_outcomes
`get_course_textbooks`	Read	text_books, reference_books
`get_course_deterministic`	Read	Protected fields (read-only context)
`get_course_lab`	Read	Lab experiments, tools/languages
`get_course_fields`	Read	Arbitrary field subset for one course
`batch_read_courses`	Read	Read specific fields from multiple courses in one call
`get_curriculum_json`	Read	Full curriculum, optionally by semester
`list_courses`	Read	Course IDs/titles, optionally by semester
`get_curriculum_stats`	Read	Aggregate statistics (total courses, credits per semester, course type distribution)
`diff_course_json`	Read	Compare two course JSONs
`get_course_draft`	Read	Read a staged course draft
`get_document_draft`	Read	Read a staged document draft
`get_version`	Read	Load a curriculum version snapshot with its course list
`diff_versions`	Read	Compare two version snapshots (added/removed/changed courses)
`get_course_assignments`	Read	Which specialization tracks a course belongs to
`list_specializations`	Read	List track definitions
`get_attachment_text`	Read	Read uploaded chat attachments
`fetch_url`	Read	Fetch external URL content
`web_search`	Read	Search the web for external context
`create_course_draft`	Write	Propose changes for a single course (reviewable draft)
`update_agent_draft`	Write	Merge fields into an existing draft (avoids duplicates)
`create_document_draft`	Write	Propose changes for multiple courses (reviewable draft)
`assign_elective_to_tracks`	Write	Categorize an elective into specialization tracks
`remove_elective_from_tracks`	Write	Remove a course from specialization tracks
`define_specialization`	Write	Create a new specialization track
`categorize_elective`	Write	AI-powered elective categorization into existing tracks
`update_deterministic_fields`	Write	Change protected fields; produces a blocked draft requiring explicit user approval
`create_refined_course`	Write	Create new courses directly (for brand-new courses only)
`create_spreadsheet`	Generate	Generate CSV or Excel (.xlsx) files from structured row data
`create_report`	Generate	Generate markdown or PDF reports
`create_curriculum_version`	Generate	Snapshot the current curriculum state
`signal_done`	Control	Signal task completion with a summary

SSE Event Types

Streamed from POST /chat/sessions/{id}/messages:

Event	Description
`status`	Status updates (model name, tool execution)
`token`	Streamed text tokens from the LLM
`tool_call`	Agent invoking a tool (name + arguments)
`tool_result`	Tool execution result
`draft`	A course draft was created
`document_draft`	A document draft was created
`refined_course`	A new course was created directly
`context_usage`	Token usage statistics
`error`	Error occurred
`done`	Stream complete

Chat Persistence

All messages (user, assistant, tool_call, tool_result) saved to chat_messages with role and metadata. Tool calls include function name and arguments; tool results include output. Conversation history persists across page refreshes.

Agent Output Validation

Validation	Behavior
`desirable_knowledge`	Placeholder values (e.g., "None specified") stripped by `_create_refined_course`
Draft-status courses	`_create_course_draft` rejects drafts, directs agent to `create_refined_course`

Versioning

create_version_snapshot copies every active refined_submissions into finalized_submissions pinned to a curriculum_versions row. restore overwrites current refined data, archives absent courses, writes revision history.

Caching

Dual cache layer (services/cache.py):

Backend	Config	Behavior
Redis (Upstash, optional)	`REDIS_URL`	Survives server restarts
In-memory dict	Fallback	Survives within a process

Prefix	TTL	Purpose
`courses_list`	180s	Course list for /api/courses
`course_pdf:`	60s	Individual course PDF bytes
`version_list`	180s	Version list for /api/versions

Invalidation: lazy (delete-on-write). Prewarm on startup. Debug: set is_cache_disabled = True in cache.py.

Error Handling & Retry

OpenRouter client (services/openrouter.py):

Parameter	Value
Retryable statuses	502, 503 (server errors)
Retryable exceptions	`httpx.TimeoutException`, `httpx.TransportError`
NOT retried	429 (rate limit) - shows error and stops immediately
Backoff	Fibonacci sequence [1, 1, 2, 3, 5, 8, 13] seconds with +/-25% jitter
Max retries	3 per request
Retry-After header	Respected when present

Fallback model:

Parameter	Behavior
`OPENROUTER_FALLBACK_MODEL`	Set env var to enable (e.g. `google/gemma-3-27b-it:free`)
Trigger	After 3 failed retries on the primary model
Scope	Commits to fallback for the rest of the chat thread
Notification	Announced via SSE status events so the UI can inform the user
Persistence	Once committed, `active_model` persists as the fallback for all subsequent calls

429 (rate limit): No retry, no fallback. Error shown in chat and status bar. User must wait and retry manually.

Chat streaming errors: Surfaced as SSE error events. UI creates error bubble even when no tokens received. Done handler reloads messages from database.

API Reference

All paths are prefixed with /api at runtime.

Health

Endpoint	Method	Purpose
`/api/health/schema`	GET	Verify required Supabase tables exist. Returns 503 if tables are missing.

Submissions

Endpoint	Method	Purpose
`/api/submissions`	POST	Store a raw submission, queue background refinement. Body: CourseSubmission.
`/api/submissions/{id}/refine`	POST	Manually trigger refinement for an existing submission.

Refined Courses

Endpoint	Method	Purpose
`/api/refined/{refined_id}`	GET	Read template-ready course fields.
`/api/refined/{refined_id}`	PATCH	Update editable refined fields. Promotes draft-status courses to refined. Body: { fields: dict }.

Course Management

Endpoint	Method	Purpose
`/api/courses`	GET	List active refined courses (cached 180s).
`/api/courses/{refined_id}/visible`	PATCH	Toggle course visibility. Body: { visible: bool }.
`/api/courses/{refined_id}`	DELETE	Soft-delete (archive) a course.

Preview & PDF

Endpoint	Method	Purpose
`/api/preview/course/{refined_id}`	GET	Render one course as HTML.
`/api/preview/course/{refined_id}/pdf`	GET	Generate PDF for one course. `?download=true` for attachment.
`/api/preview/html`	GET	Render full curriculum as HTML.
`/api/preview/pdf`	GET	Generate full curriculum PDF. `?download=true` for attachment.
`/api/preview/semester/{sem}/pdf`	GET	Generate one semester as PDF.
`/api/preview/semester/{sem}/courses`	GET	List course IDs for a semester.
`/api/preview/pending-courses`	GET	List draft-status (pending) courses.
`/api/preview/courses`	GET	List all visible refined course IDs.

Agent Drafts

Endpoint	Method	Purpose
`/api/agent/drafts`	GET	List 100 most recent agent drafts.
`/api/agent/drafts`	POST	Create a single-course draft. Body: { refined_id, fields, reason? }.
`/api/agent/drafts/{draft_id}`	GET	Fetch a draft with base/proposed JSON and diff summary.
`/api/agent/drafts/{draft_id}/apply`	POST	Apply a proposed draft. Rejects blocked drafts or protected-field changes.
`/api/agent/drafts/{draft_id}/preview`	GET	Render draft as HTML. `?diff=true` for diff view.

Document Drafts (multi-course)

Endpoint	Method	Purpose
`/api/agent/document-drafts`	GET	List 100 most recent document drafts.
`/api/agent/document-drafts`	POST	Create a multi-course draft. Body: { courses: [{ refined_id, fields }], reason? }.
`/api/agent/document-drafts/{id}`	GET	Fetch document draft with all linked course drafts.
`/api/agent/document-drafts/{id}/apply`	POST	Apply all proposed sub-drafts.
`/api/agent/document-drafts/{id}/preview`	GET	Render all proposed courses. `?diff=true` for diff view.

Agent Tools & Diff

Endpoint	Method	Purpose
`/api/agent/tools`	GET	List all agent tool schemas (OpenAI function-calling format).
`/api/agent/tools/{tool_name}`	POST	Execute a tool directly. Body: { arguments: dict }.
`/api/agent/context-length`	GET	Return current model's context window size.
`/api/agent/diff`	POST	Compute structured diff between two course JSONs.

Chat

Endpoint	Method	Purpose
`/api/chat/sessions`	GET	List active sessions. `?refined_id=` or `?document_draft_id=` to filter.
`/api/chat/sessions`	POST	Create a session. Body: { refined_id?, document_draft_id?, title? }.
`/api/chat/sessions/{id}`	PATCH	Rename a session. Body: { title }.
`/api/chat/sessions/{id}`	DELETE	Soft-archive a session and its messages.
`/api/chat/sessions/{id}/messages`	GET	Fetch all messages in a session.
`/api/chat/sessions/{id}/messages`	POST	Send a message and stream response via SSE. Events: status, token, tool_call, tool_result, draft, document_draft, refined_course, context_usage, error, done.
`/api/chat/sessions/{id}/attachments`	POST	Upload files (multipart/form-data). 10MB/file, 25MB total.
`/api/chat/sessions/{id}/attachments/{att_id}/download`	GET	Download an attachment.
`/api/chat/sessions/{id}/attachments/{att_id}/preview`	GET	Preview an attachment inline.

Versions

Endpoint	Method	Purpose
`/api/versions`	GET	List all curriculum snapshots. Includes course_count and has_changes.
`/api/versions`	POST	Create a snapshot. Returns 409 if no changes since last version. Body: { name, program?, academic_year?, status? }.
`/api/versions/{version_id}`	GET	Fetch version with its course list.
`/api/versions/{version_id}`	PATCH	Update version metadata. Body: { name?, academic_year?, status? }.
`/api/versions/{version_id}`	DELETE	Delete a version and its finalized_submissions.
`/api/versions/{version_id}/restore`	POST	Restore a snapshot. Archives absent courses. Resets applied drafts.
`/api/versions/{version_id}/courses/{refined_id}`	GET	Fetch a single course snapshot from a version.
`/api/versions/{version_id}/courses/{refined_id}/preview`	GET	Render a version course as HTML.
`/api/versions/{version_id}/preview`	GET	Render all version courses. `?diff=true` for diff vs current.
`/api/versions/{id1}/diff/{id2}`	GET	Render side-by-side diff between two versions.

Auth

Endpoint	Method	Purpose
`/api/auth/check`	GET	Verify the bearer token is valid. Returns user info or 401.
`/api/auth/logout`	POST	Sign out the current user.

Query Parameters

Parameter	Applies to	Description
`curriculum_year`	All preview/PDF endpoints	Pin the batch year (e.g. 2025-2026). Falls back to CURRICULUM_YEAR env var.
`download`	PDF endpoints	Set true to trigger Content-Disposition attachment.
`diff`	Draft/version preview	Set true to render diff view instead of proposed content.

Total: 49 endpoints across 9 route files.

Database Schema

Run docs/schema.sql in the Supabase SQL editor. Required tables:

submissions, refined_submissions, curriculum_versions, finalized_submissions, agent_drafts, agent_document_drafts, course_revision_history, chat_sessions, chat_messages, chat_attachments, specialization_definitions, course_specialization_assignments.

Course Status Lifecycle

submissions.status:    pending  ->  refined
refined_submissions:   draft    ->  refined  ->  archived
agent_drafts:          proposed ->  applied
                       blocked  ->  proposed (on user edit)
chat_sessions:         active   ->  archived

Key Columns on refined_submissions

course_code, course_title, semester, credit_category, program, lecture_hours, tutorial_hours, practical_hours, self_study, credits, course_type, is_elective, visible, units (jsonb), objectives/text_books/... (arrays), status.

visible (default true) controls whether a course renders in preview/PDF output. Toggle it from the course management page. Hidden courses stay in the database and remain editable but are excluded from every rendered document.

Verify with GET /api/health/schema.

Table Relationships

refined_submissions (1) ----< (N) agent_drafts
refined_submissions (1) ----< (N) course_revision_history
curriculum_versions (1) ----< (N) finalized_submissions
agent_document_drafts (1) ----< (N) agent_drafts
chat_sessions (1) ----< (N) chat_messages
chat_sessions (1) ----< (N) chat_attachments
specialization_definitions (1) ----< (N) course_specialization_assignments
refined_submissions (1) ----< (N) course_specialization_assignments

Specialization Tables

Table	Schema
`specialization_definitions`	One row per track: id, semester, letter (A/B/C...), name, key (SCC/MIDS/CSCS), academic_year
`course_specialization_assignments`	One row per (course, track) membership: id, refined_id, specialization_id
`refined_submissions.is_elective`	Boolean flag marking a course as an elective

Environment Variables

Required backend (/api server, loaded from repo-root .env)

Variable
`SUPABASE_URL`
`SUPABASE_KEY`
`OPENROUTER_URL`
`OPENROUTER_API_KEY`
`OPENROUTER_MODEL`

Optional

Variable	Description
`CURRICULUM_YEAR`	The active batch label (e.g. 2025-2026)
`OPENROUTER_FALLBACK_MODEL`	Backup model used when the primary model fails after retries (e.g. `google/gemma-3-27b-it:free`)
`REDIS_URL`	Upstash Redis URL for persistent caching (falls back to in-memory)
`SENTRY_DSN`, `SENTRY_ENVIRONMENT`, `SENTRY_RELEASE`	Error tracking configuration

The frontend uses the public Supabase anon key directly in shared/supabase-client.js.

Deployment

Backend (HF Spaces)

Docker image runs uvicorn app.main:app --host 0.0.0.0 --port 7860 (HF Space).

.github/workflows/sync-to-hub.yml syncs main to the HF Space.

Required HF Space secrets:

Secret	Description
`SUPABASE_URL`, `SUPABASE_KEY`	Database connection
`OPENROUTER_URL`, `OPENROUTER_API_KEY`, `OPENROUTER_MODEL`	LLM provider
`OPENROUTER_FALLBACK_MODEL`	Recommended fallback model
`REDIS_URL`	Optional persistent caching
`SENTRY_DSN`, `SENTRY_ENVIRONMENT`, `SENTRY_RELEASE`	Optional error tracking

Frontend (Vercel)

Static hosting with frontend/vercel.json rewriting /api/* to the backend.

Required Vercel environment variables:

Variable	Description
`NEXT_PUBLIC_SUPABASE_URL`	Public Supabase URL
`NEXT_PUBLIC_SUPABASE_ANON_KEY`	Public Supabase anon key

CI (.github/workflows/ci.yml)

Runs on push/PR: checkout, Python 3.12, pip install (cached), apt-get install poppler-utils, pytest, python -m compileall backend/app.

Local Development

python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
cd backend && fastapi dev app/main.py

Server at http://127.0.0.1:8000. API under /api. Frontend served from frontend/.

source .venv/bin/activate
pytest                              # all tests
python -m compileall backend/app    # also runs in CI
